50*100mm white twisted aluminum square tube profiles

Brand Name : TianYuan

Model Number : TY-010

Certification : CE,ISO9000...

Place of Origin : Made in China

MOQ : 1*20"container

Price : USD15.7/m2

Payment Terms : L/C,T/T

Supply Ability : 9000M2/days

Delivery Time : 15-20days

Packaging Details : 1pcs/PE packing /box /wood packing

Application : Commercial Buildings

Ceiling Tile Type : Metal Ceilings

Moistureproof : Yes

Corrosion Resistance : Excellent

Certificates : CE/CCC/ISO9000

Function : Anti-static, Anti-Bacterial, Mould-proof

Surface Treatment : Powder Coated

Durability : Long-lasting

Stain Resistant : Yes

Contact Now

50×100mm White Twisted Aluminum Square Tube Profiles
Twisted aluminum square tubes represent an innovative material in modern architectural decoration, combining aluminum's excellent performance with unique twisted shapes to bring new vitality to building design. From Beijing's "Red Ribbon" to the Shanghai International Financial Center, these profiles are reshaping contemporary architectural aesthetics with their lightweight and flexible characteristics.

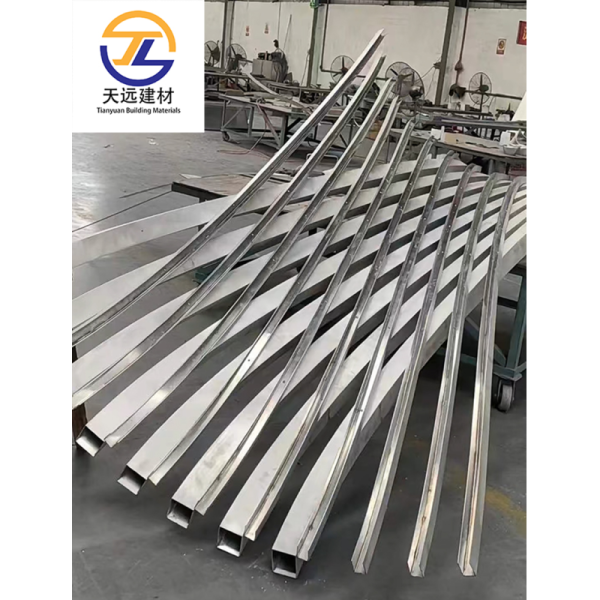

50*100mm white twisted aluminum square tube profiles
These specialized aluminum alloy square tubes undergo precise axial torque application to standard profiles, creating continuous spiral or localized twisted effects along their length.
Core Characteristics
  • Lightweight Construction: Aluminum alloy's low density facilitates easy transportation and installation
  • High Strength Performance: 6061-T6 grade offers tensile strength of 290-350MPa, exceeding ordinary steel
  • Superior Corrosion Resistance: Natural oxide film resists acid and alkali erosion, ideal for outdoor applications
  • Unique Three-Dimensional Effect: Twisted shape creates flowing visual appeal and spatial layering
  • Fire and Moisture Resistant: Non-combustible material with excellent moisture resistance for various environments
  • Excellent Processability: Can be bent and twisted to realize complex design concepts

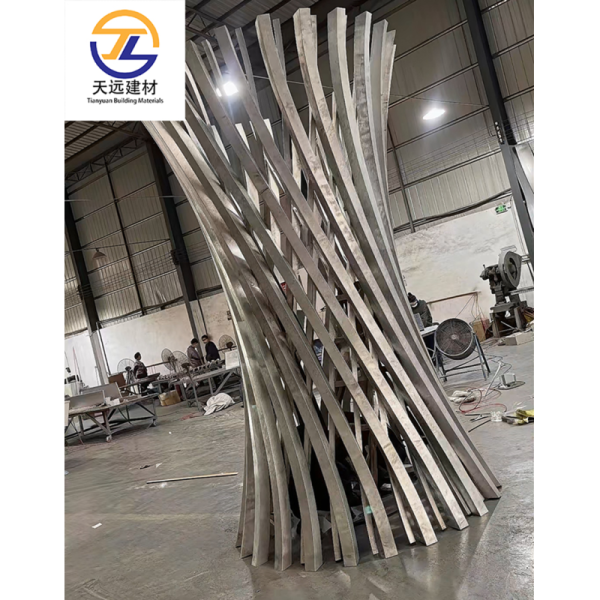

50*100mm white twisted aluminum square tube profiles
Materials and Specifications
Main Material Options
Alloy TypeFeaturesApplication Scenarios
6061High strength (tensile strength 290-350MPa) with excellent weldabilityStructural support, high-load curtain walls
6063Easy processing and forming, smooth surface, enhanced corrosion resistanceDecorative lines, suspended ceilings, applications requiring fine surface treatment
Common Specification Range
  • Section Size: Square (20×20mm to 200×200mm), Rectangular (10×20mm to 200×400mm)
  • Wall Thickness: 0.8-3.0mm (1.2mm minimum recommended for twisting processing)
  • Standard Length: 6 meters, customizable up to 12 meters
  • Twist Parameters: Twist angle 30°-90°, torque (pitch) 100-500mm, adjustable per design requirements
Special Note: The twisting effect correlates closely with section shape. Flat sections (e.g., 20×100mm) achieve optimal twisting with minimal deformation and maximum visual impact.

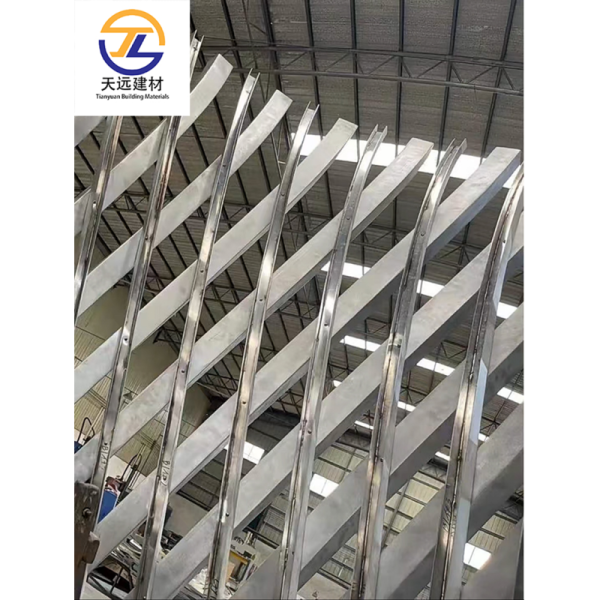

50*100mm white twisted aluminum square tube profiles
Processing Technology
Twisted aluminum square tubes utilize a "extrusion first, then twisting" manufacturing process:
  1. Raw Material Preparation: Selection of 6061/6063 aluminum alloy ingots with comprehensive quality inspection
  2. Extrusion Forming: High-temperature extrusion (400-500℃) through specialized molds to create standard square tubes
  3. Cooling and Setting: Rapid cooling via air or water systems to ensure dimensional accuracy
  4. Twisting Processing (Core Process):
    • Cold Twisting Method: CNC twisting equipment applies precise torque at room temperature for uniform spiral twists
    • Hot Twisting Method: Local heating to 200-300℃ improves plasticity for complex shape formation
    • Stretching-Bending Combination: Sequential stretching, bending, and twisting for three-dimensional complex deformation
  5. Surface Treatment:
    • Fluorocarbon Spraying: Two-coat one-bake/three-coat one-bake systems with 10-20 year color retention
    • Powder Spraying: Cost-effective solution with extensive color options
    • Wood Grain Transfer Printing: Simulates wood texture for retro or natural style designs
50*100mm white twisted aluminum square tube profiles
Application Fields
Architectural Decoration Applications
  • Curtain Wall Systems: Including the "Red Ribbon" sculpture curtain wall featuring 13,000㎡ bidirectional twisted curved surface with 15,000 custom aluminum tubes
  • Suspended Ceilings: Create dynamic spatial effects like wavy and spiral shapes for shopping malls, hotels, and airports
  • Wall Decoration: Replace traditional flat panels to add three-dimensional visual layering
  • Partition Screens: Twisted shape screens that balance privacy with transparency
Additional Applications
  • Furniture Design: Table and chair frames, decorative ornaments with unique texture
  • Landscape Facilities: Park pavilions, outdoor sunshade structures, railings and handrails
  • Display Cabinet Props: Shopping mall display racks designed to attract customer attention
  • Art Creation: Structural support for large sculptures and installation art pieces
